Setup XV Gateway on Dealer Admin

Note: In order to connect an XV Gateway to an XR Series, the panel requires firmware Version 221 or higher.

1. Go to dealer.securewireless.com and log in.

2. Go to Customers and select the System Name.

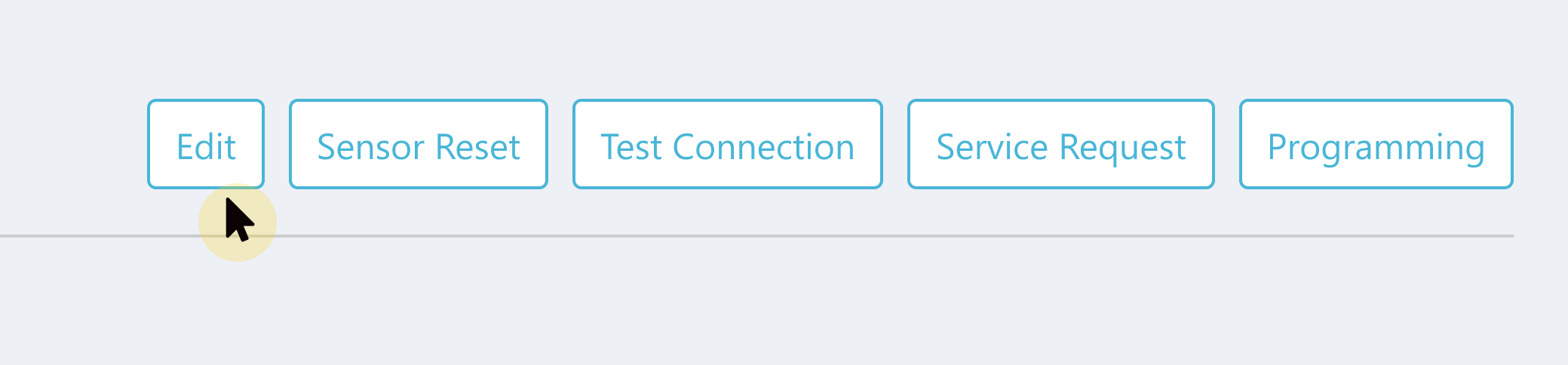

3. At the top of the screen, select Edit.

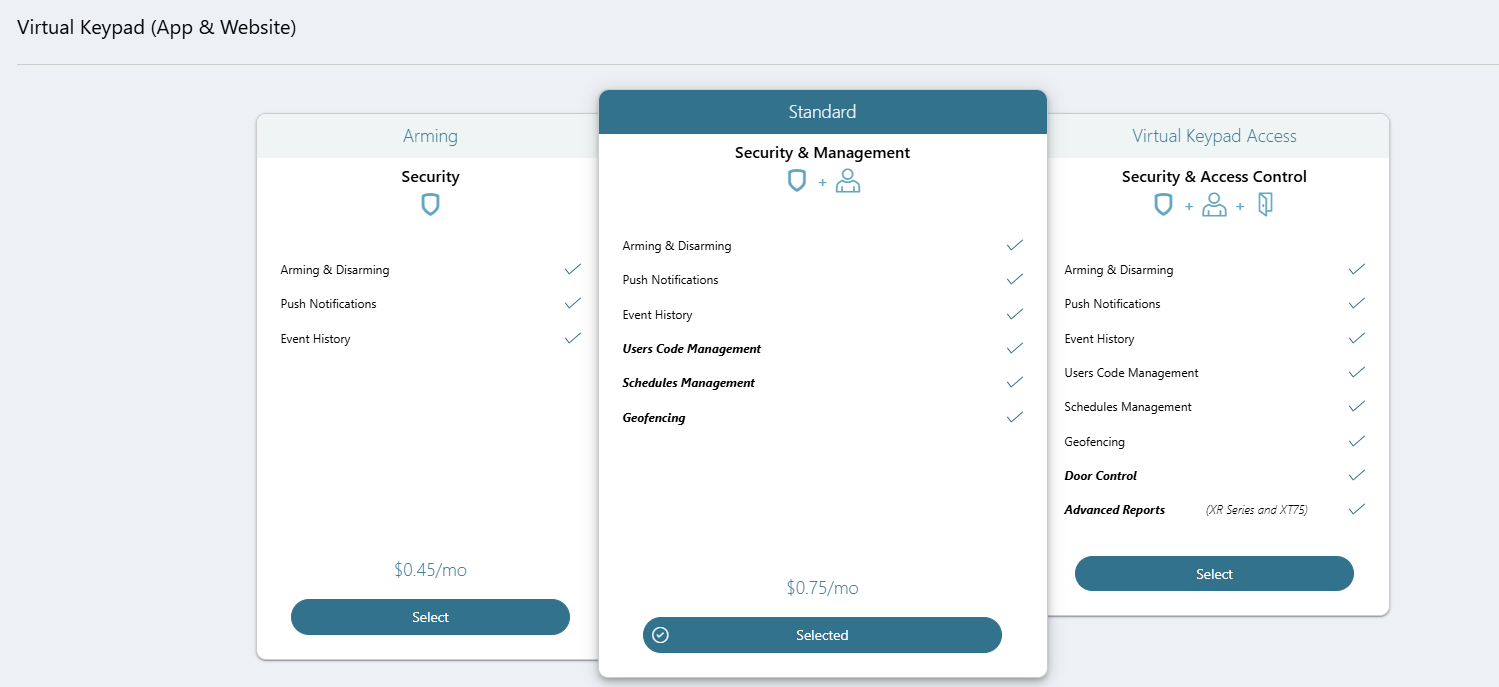

4. In Virtual Keypad (App & Website), select your desired plan to view additional features.

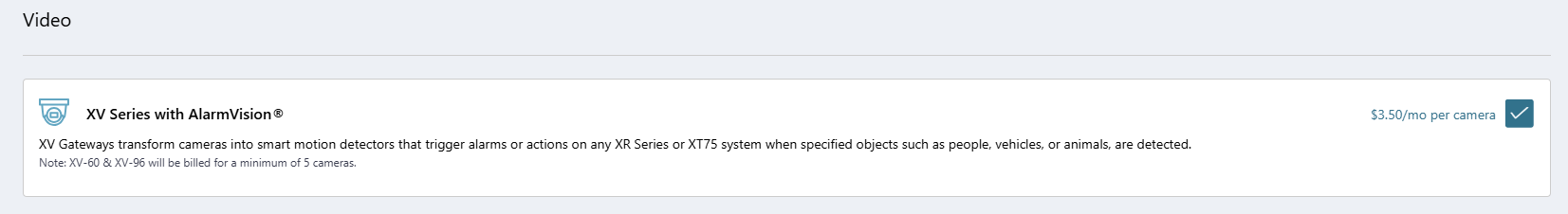

4. Scroll down to Video. In XV Series with AlarmVision®, select the checkbox to enable the XV Gateway.

5. At the top or bottom of the screen, select Save.

Add an XV Gateway

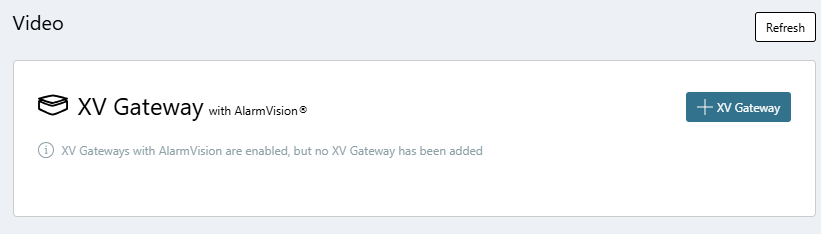

1. In Video, go to XV Gateway with AlarmVision®. Select + XV Gateway to add an XV Gateway.

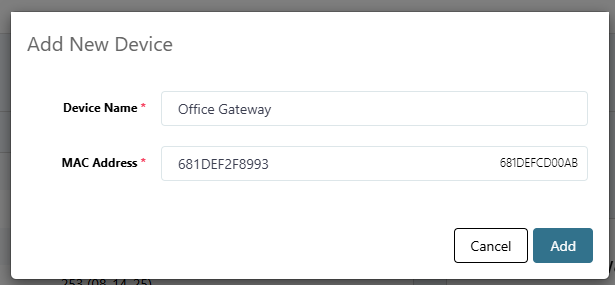

2. Add a Device Name and the MAC Address you want the XV Gateway connected to. Select Add. Dealer Admin automatically checks to see if the XV Gateway is a model XV-24, XV-60, or XV-96.

If the XV Gateway is a model XV-24, continue to the Add Cameras to the XV Gateway section below.

If the XV Gateway is a model XV-60 or XV-96 and the second NIC port has been connected, the following prompts display to configure a secondary NIC.

Configure Secondary NIC for Private Camera Network

There are two connection options to choose from when adding a secondary network interface to a private camera network.

The first connection option is using a DHCP Server. This option automatically assigns a dynamic IP address to the XV Gateway so it can change over time. If you can plug in a camera or device into your private network and immediately access other devices on the network, then you likely have a DHCP server.

The second connection option is using a Static IP Address. This refers to an IP address that is manually assigned to the XV Gateway and does not change automatically. If your private camera network consists of only cameras and you set up each camera with its own static IP address, then you likely do not have a DHCP server.

Before configuring a secondary network interface in Dealer Admin, connect a network cable to the second network switch. Allow 5 minutes for the XV Gateway to scan your camera network before proceeding.

Note: The panel can only be connected to the primary network connection through the network switch or subnet.

DHCP

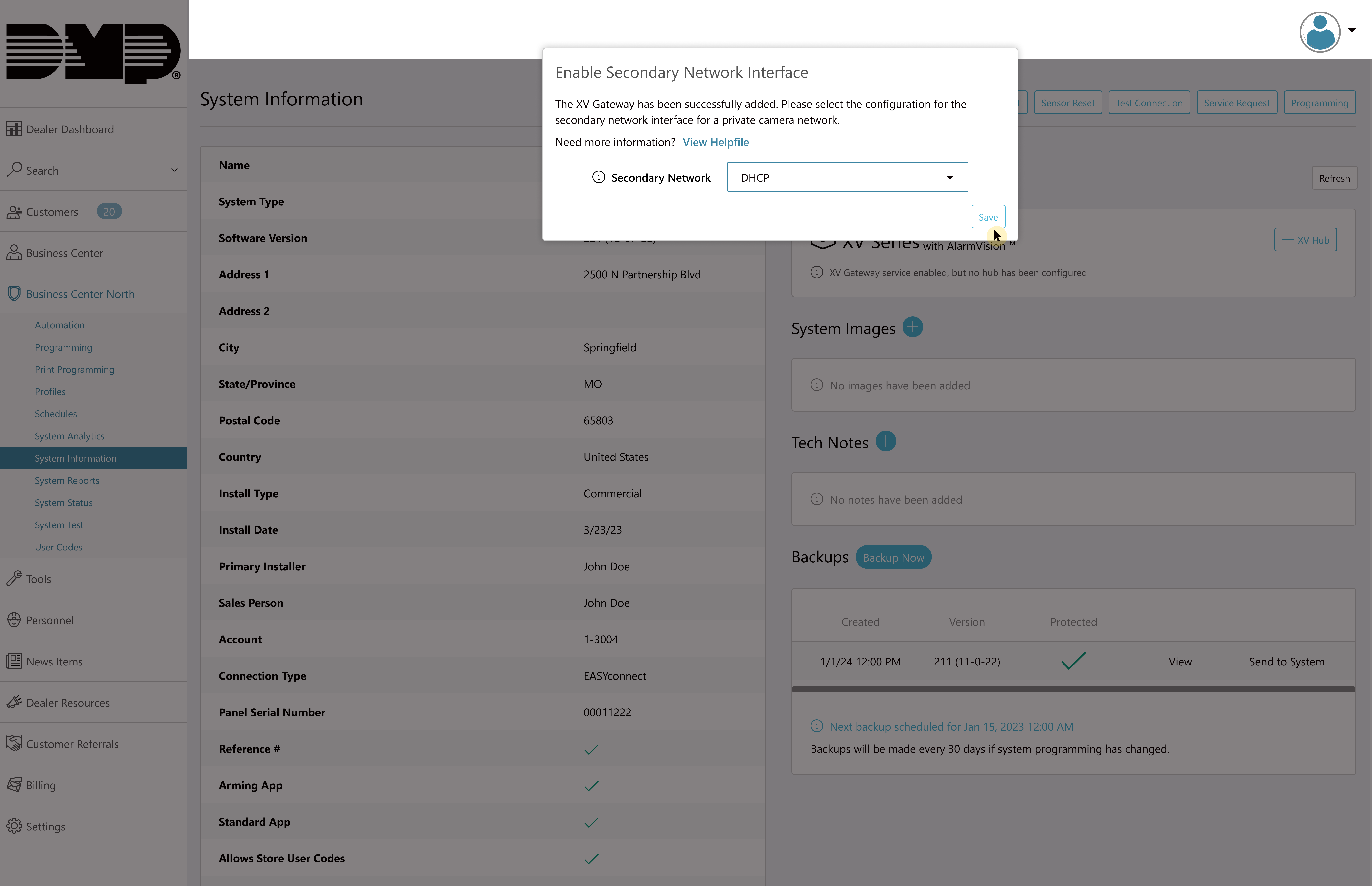

1. DHCP is automatically selected in Dealer Admin. Click Save.

Note: Select DHCP to allow your private camera network’s DHCP server to assign the address for your XV Gateway’s secondary NIC.

Static IP

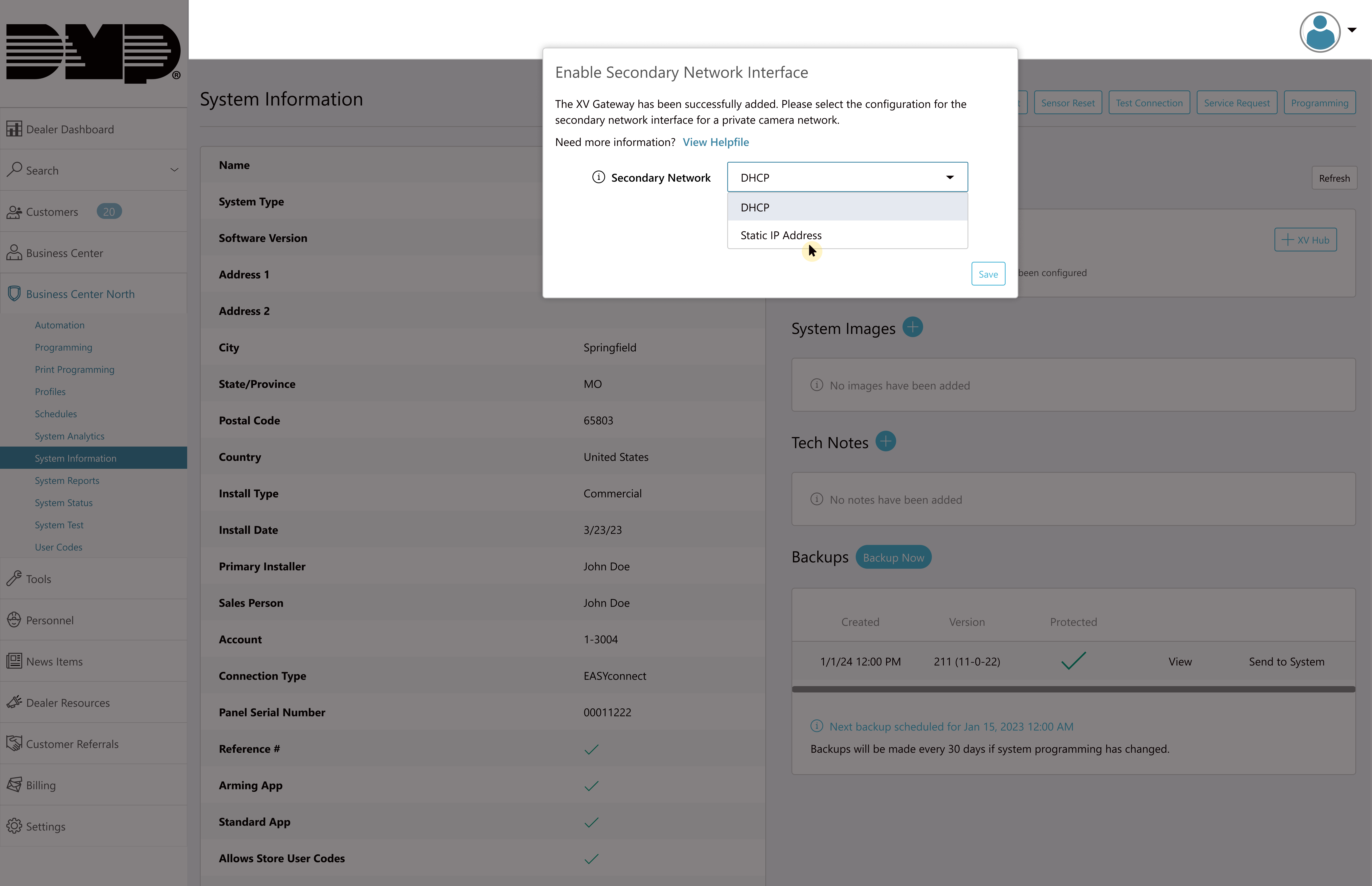

1. Select Static IP Address from the drop-down menu.

Note: If your private network has a DHCP Server, ensure the Static IP Address is reserved.

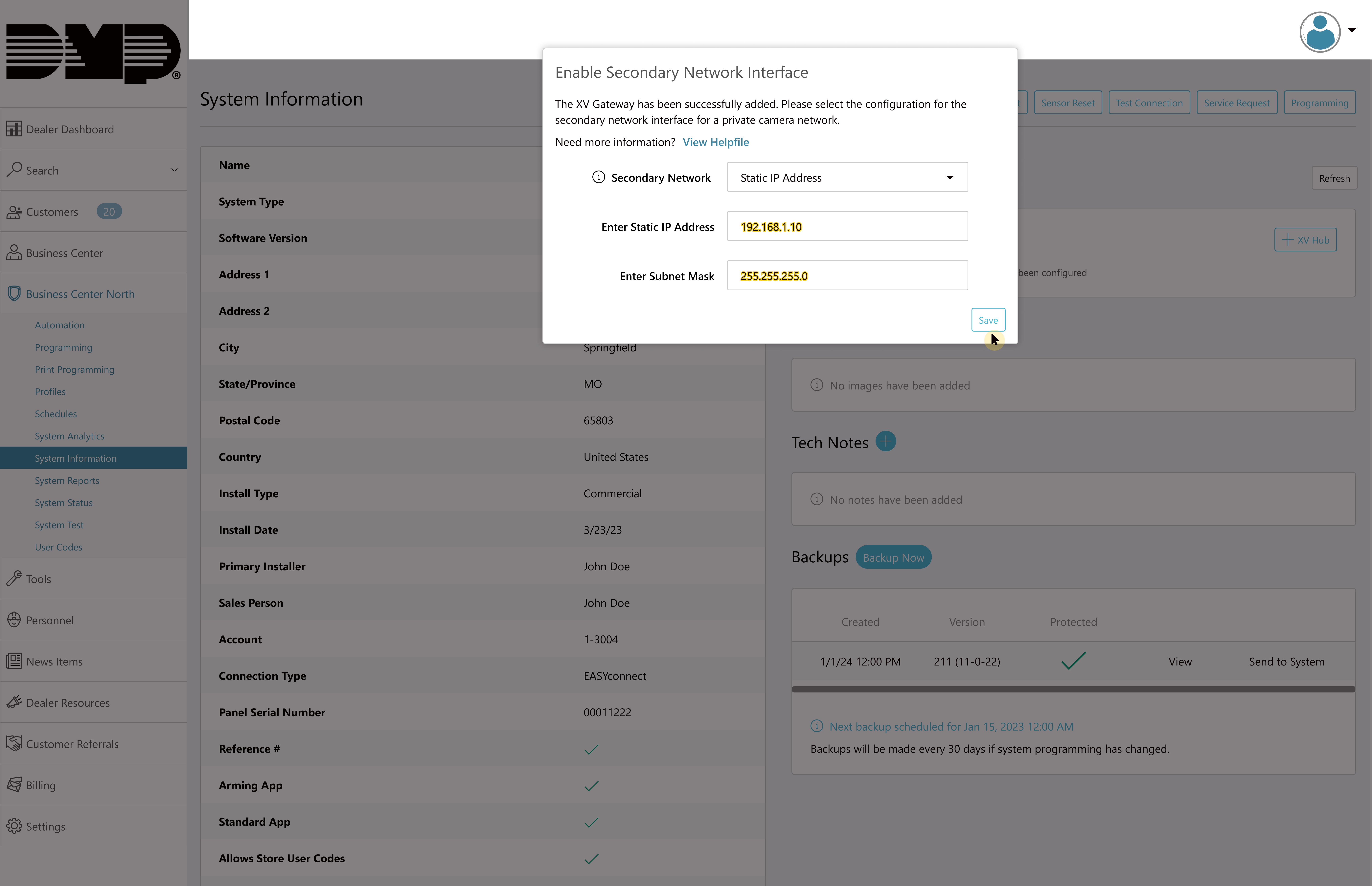

2. Enter the Static IP Address and Subnet Mask information. Then, click Save.

Note: Ensure that the Static IP Address and Subnet Mask are the same network segment used for the cameras on your private camera network.

Configure a Secondary NIC After XV Gateway Has Been Added

1. After setting up the XV Gateway, connect a network cable to the secondary network port on the back of the XV Gateway. Allow up to 5 minutes for the XV Gateway to scan your camera network. Refresh the Dealer Admin browser before proceeding.

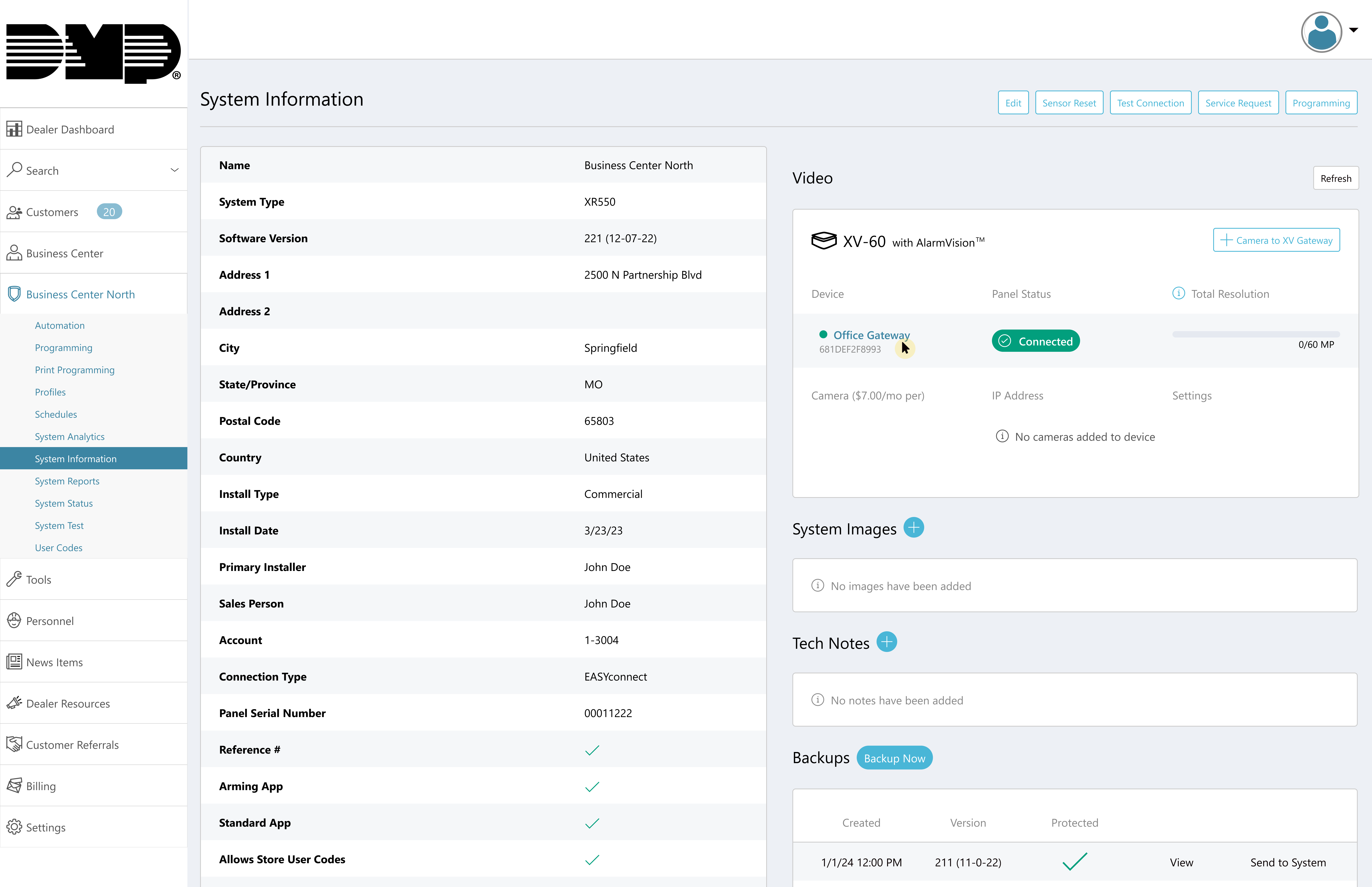

2. Select the XV Gateway from the XV Series with AlarmVision® section.

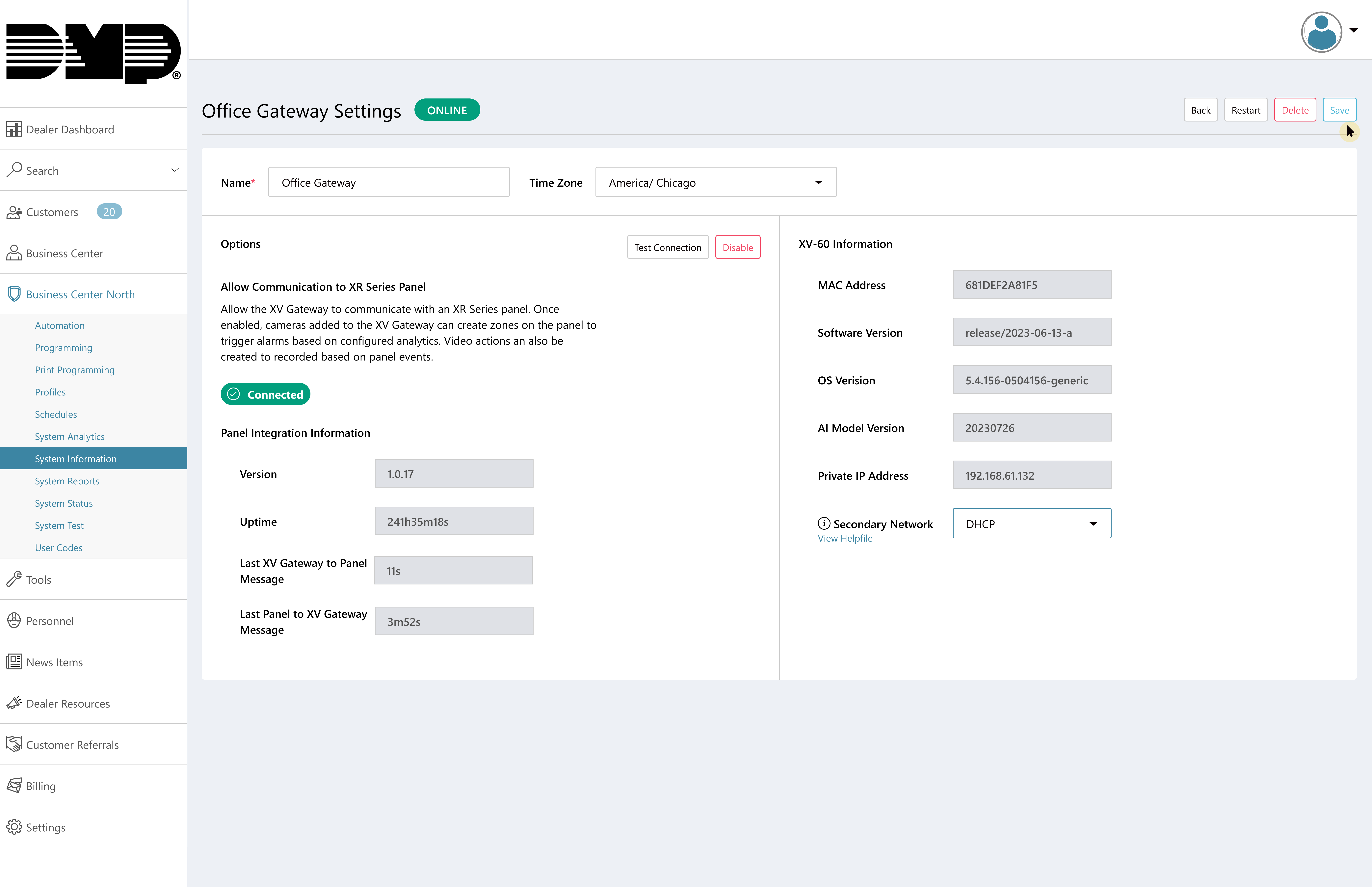

2. In Secondary Network, use the drop-down menu to select the network connection type.

3. Click Save to apply any changes to the XV Gateway.
